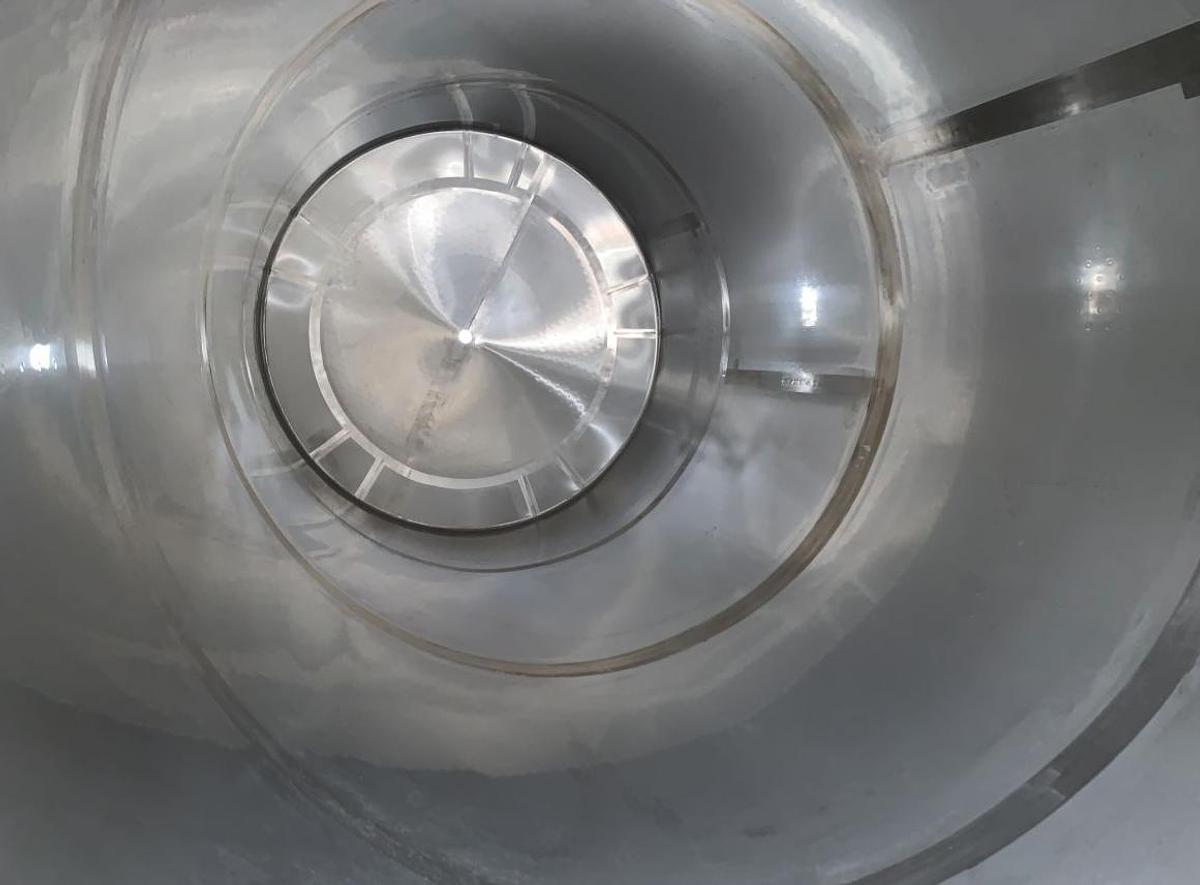

20,000 Litre 316 Stainless Steel Storage Tanks with Heat Exchanger

Brand New

2 Available

Atmospheric

15 degree conical top and bottom

Min temperature -10 °C

Total discharge

4 adjustable feet

Type of Heat Exchanger on cylinder -

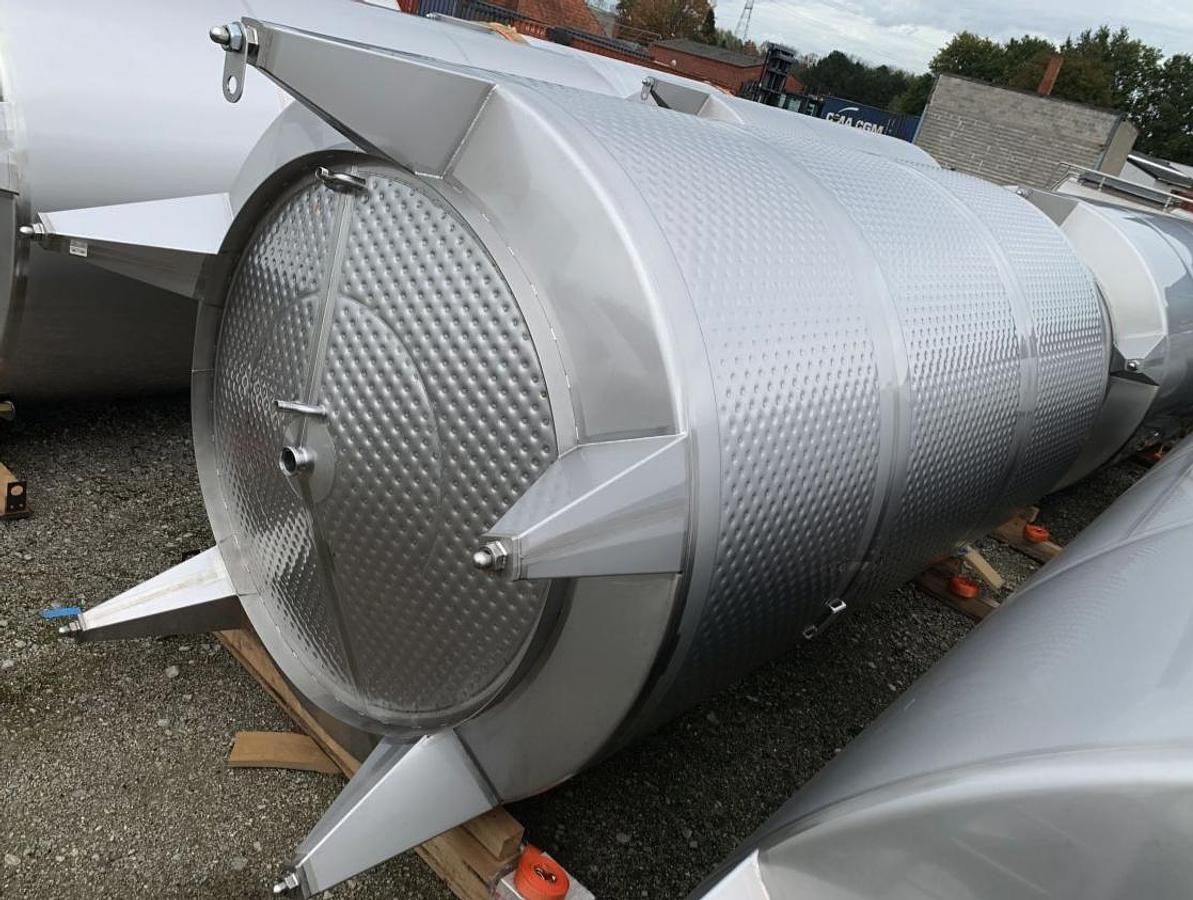

Dimple jacket with 3 sections on the shell

Water pressure 3 Bar

Steam pressure 0.49 Bar

Hydraulic Test pressure 4.50 Bar

Contact surface cylinder 26m2

Working temperature cylinder 100 °C

Type of Heat Exchanger on bottom -

Dimple jacket

Water pressure 3 Bar

Steam pressure 0.49 Bar

Hydraulic test pressure 4.50 Bar

Contact surface 2m2

Working temperature cylinder 100 °C

Suitable for food industry

Drawings included

1 manway 500mm round

Tank Outlet 65mm round

Outlet type DIN11851 male

Thickness; 2.5mm on top and cylinder 3mm on bottom

Outer diameter 2.4m

Cylinder height 4.25m

Total height 5.39m

Empty weight 1200kg
