Reference Number: TT-9835

Manufacturer: Caterpillar

Model: G3520E

Quantity Available: 3 Units

Total Plant Capacity: 6 MW (6,000 kW)

Individual Unit Output: 2,000 kW / 2,500 kVA

Engine Year: 2008

Generator Years: 2008–2010

Commissioned: 2011

Frequency: 50 Hz

Speed: 1,500 RPM

Condition: Used – Reported Excellent Condition

Availability: Immediate Delivery

Description

SBS Ayrshire is pleased to offer for sale a complete 6 MW Caterpillar G3520E gas-fired power generation plant, comprising three containerised 2,000 kW gas engine generator sets, together with associated electrical equipment, control panels, cooling systems and auxiliary plant.

Manufactured in 2008 and commissioned in 2011, these heavy-duty Caterpillar gas generators are designed for continuous industrial power generation applications.

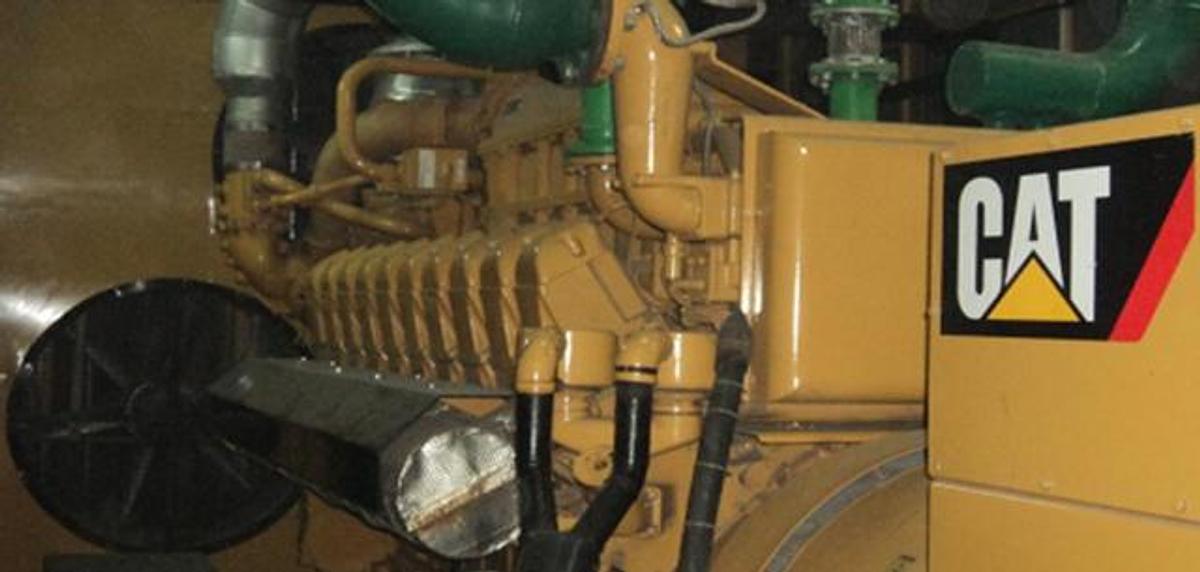

Each unit is powered by a Caterpillar G3520E gas engine coupled to a Caterpillar SR4B HV high-voltage alternator, delivering 2,000 kW electrical output at 1,500 RPM and 50 Hz.

The plant is supplied with Terberg engine control panels, acoustic enclosures, radiator structures, 11 kV switchgear, cooling systems and associated auxiliary equipment.

With a combined installed generating capacity of 6 MW, this equipment represents an opportunity for power generation operators, industrial facilities, independent power producers and energy project developers seeking high-capacity gas-fired generating equipment.

Technical Specifications – Gas Engines

Alternator Specifications

Generator 1 & Generator 2

• Manufacturer: Caterpillar
• Model: SR4B HV
• Frame: 2650
• Year: 2008
• Rated Output: 2,500 kVA / 2,000 kW
• Voltage: 10,500 V
• Current: 138 A
• Frequency: 50 Hz
• Speed: 1,500 RPM
• Phase: 3 Phase
• Power Factor: 0.8
• Insulation Class: F
• Rated Altitude: 1,000 m
• Excitation: 63 V / 13.8 A

Generator 3

• Manufacturer: Caterpillar
• Model: SR4B HV
• Frame: 2650
• Year: 2010
• Rated Output: 2,500 kVA / 2,000 kW
• Voltage: 11,000 V
• Current: 131 A
• Frequency: 50 Hz
• Speed: 1,500 RPM
• Phase: 3 Phase
• Power Factor: 0.8
• Insulation Class: H
• Rated Altitude: 1,000 m
• Excitation: 52 V / 11.4 A

Operating Hours

The recorded operating hours for the three Caterpillar G3520E engines are:

• Unit 1: 22,436 Hours
• Unit 2: 31,297 Hours
• Unit 3: 28,617 Hours

All three units are reported to be in excellent condition. Maintenance records, inspection arrangements and further technical information can be discussed upon enquiry.

Scope of Supply

The complete 6 MW power generation package includes:

• 3 x Caterpillar G3520E gas engine generator sets, each rated at 2,000 kW
• 3 x Caterpillar SR4B HV high-voltage alternators
• 3 x Terberg engine control panels

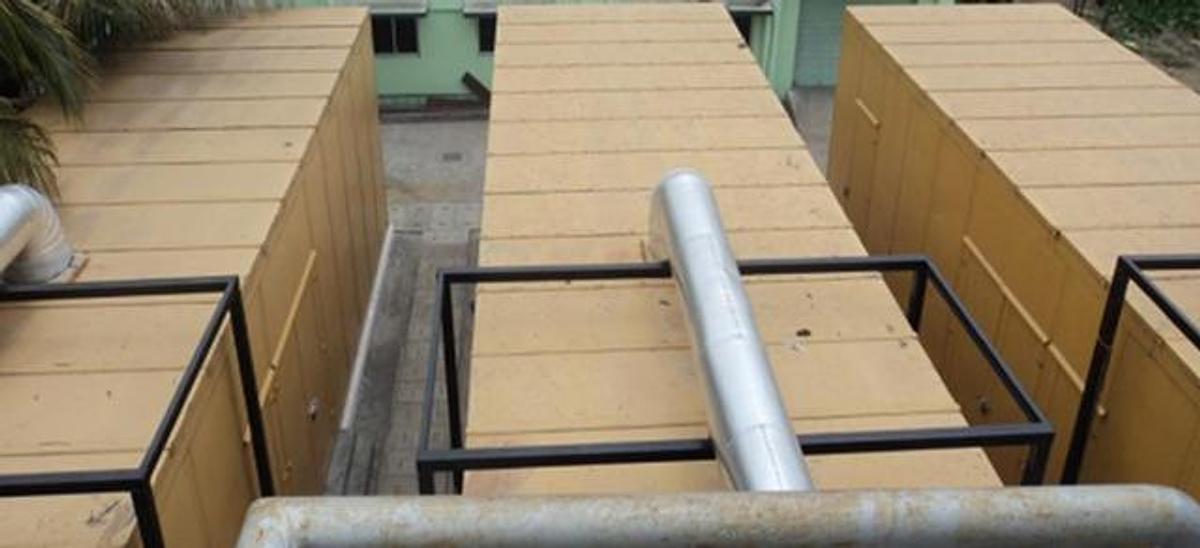

• 3 x Acoustic enclosures

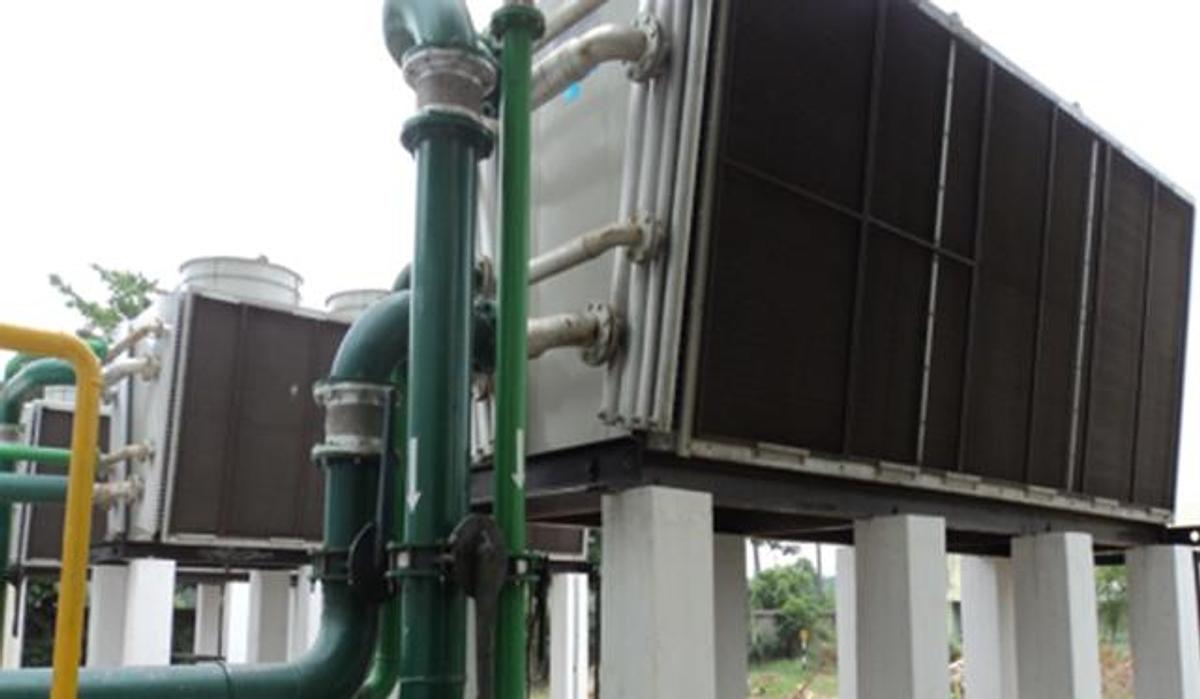

• 3 x Radiator structures
• Common chimney and exhaust arrangement
• Associated cooling systems
• Electrical cables and cable trays
• 11 kV switchgear
• Neutral grounding resistor (NGR) equipment
• Auxiliary motor control centre (MCC) panels

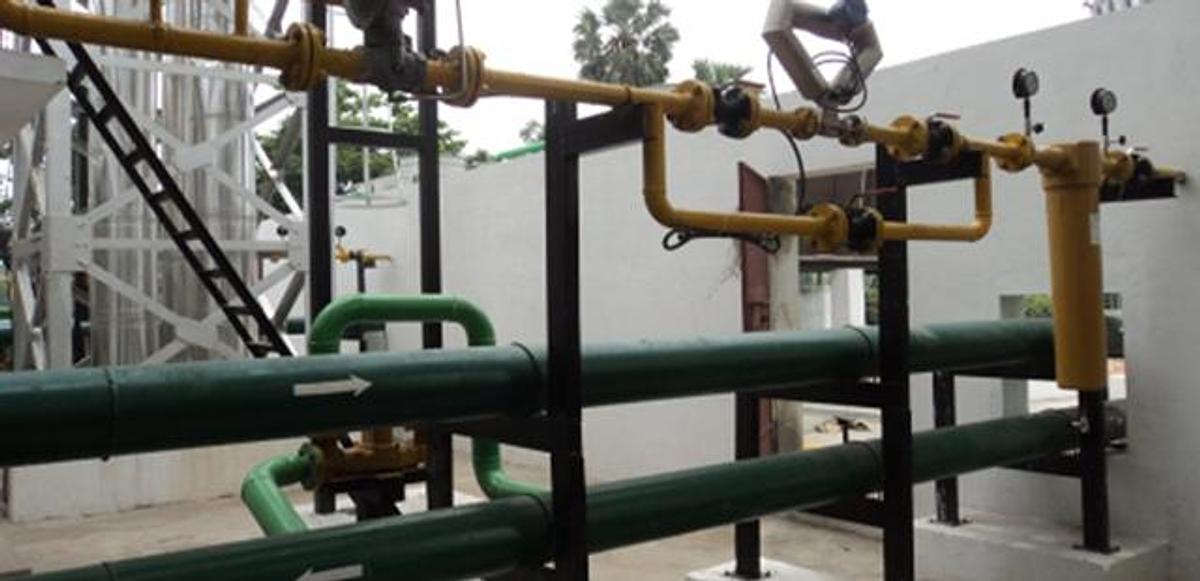

• Gas flow meter
• Starting batteries

The equipment is offered as a complete power generation package, subject to final confirmation of the scope of supply.

Key Features

• 6 MW total installed generating capacity
• Three Caterpillar G3520E gas engine generator sets
• 2 MW output per unit
• 50 Hz, 1,500 RPM configuration
• High-voltage Caterpillar SR4B HV alternators
• Containerised / acoustically enclosed design
• Terberg engine management and control panels
• Switchgear, cooling equipment and auxiliaries included
• Commissioned in 2011
• Reported excellent condition
• Immediate availability

Applications

Suitable for a range of industrial and commercial power generation applications, including:

• Independent power generation projects
• Industrial and manufacturing facilities
• Captive power generation
• Gas-fired power stations
• Combined heat and power (CHP) projects, subject to the required heat recovery equipment
• Utility and distributed generation projects

Availability & Enquiries

Available for Immediate Delivery

For pricing, further technical information, inspection arrangements or to discuss purchasing the complete 6 MW Caterpillar G3520E power plant, please contact SBS Ayrshire.
