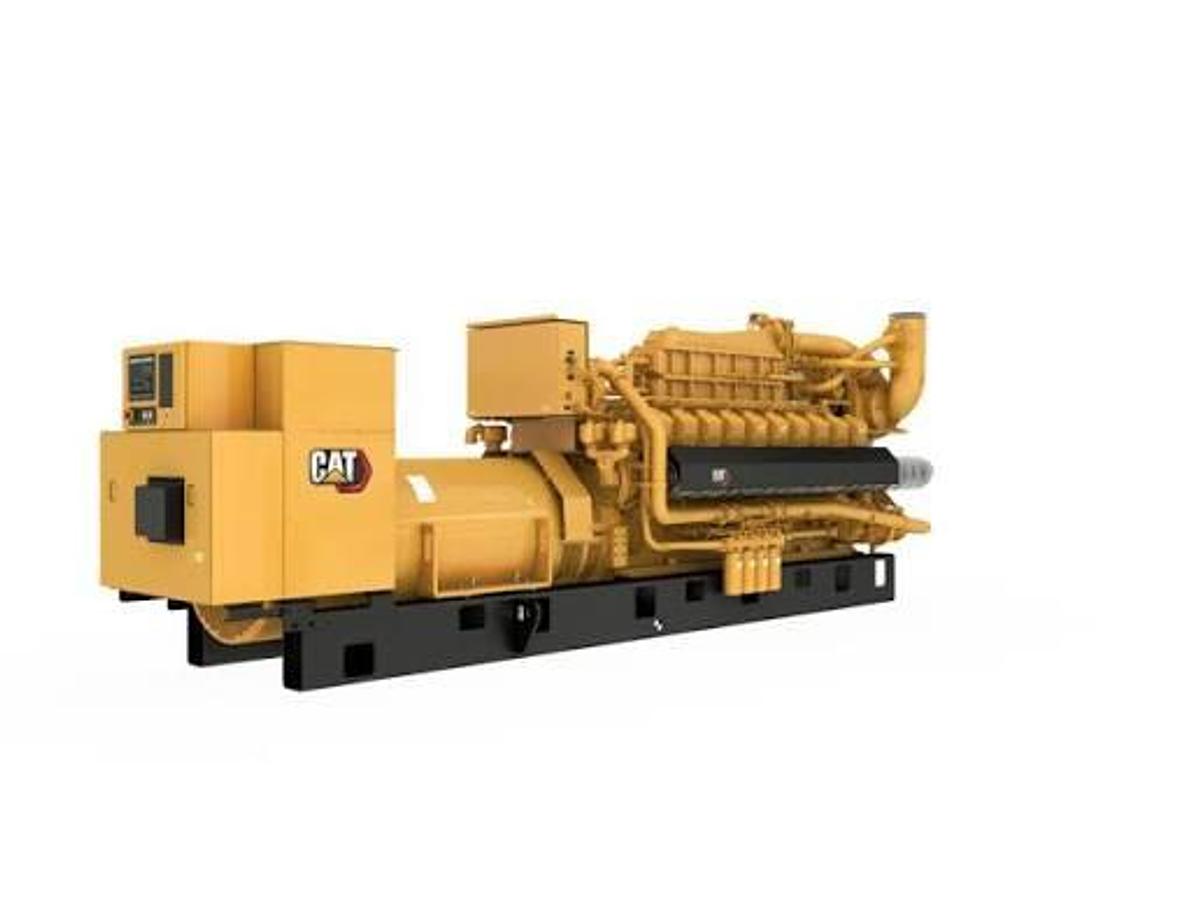

Caterpillar G3520E Containerised Gas Generator Sets – 2,000 kW Each | 6 MW Total | 50 Hz

Reference: TT-9835

Manufacturer: Caterpillar

Model: G3520E

Quantity: 3 Complete Gas Generator Sets

Output: 2,000 kW / 2,500 kVA Each

Combined Capacity: 6 MW

Frequency: 50 Hz

Speed: 1,500 RPM

Generator Voltage: 10.5–11 kV

Year: 2008–2010

Commissioned: 2011

Availability: Immediate Delivery

Offered for sale is a complete 6 MW Caterpillar gas fired power generation plant, comprising three Caterpillar G3520E containerised gas engine generator sets, each rated at 2,000 kW (2 MW).

The units are configured for 50 Hz operation at 1,500 RPM and are coupled to Caterpillar SR4B HV high voltage alternators rated at 2,500 kVA / 2,000 kW. The package includes the associated control panels, cooling equipment, acoustic enclosures, switchgear and auxiliary equipment required for the installation.

The generator sets were commissioned in 2011 and are reported to be in excellent condition. They are available for immediate delivery.

Engine Details

All three units are fitted with Caterpillar G3520E gas engines:

• Engine 1: 2,000 kW / 2,776 HP, 1,500 RPM, Year 2008 – 22,436 running hours
• Engine 2: 2,000 kW / 2,776 HP, 1,500 RPM, Year 2008 – 31,297 running hours
• Engine 3: 2,000 kW / 2,776 HP, 1,500 RPM, Year 2008 – 28,617 running hours

Generator Details

Generators 1 & 2

• Manufacturer: Caterpillar
• Model: SR4B HV
• Frame: 2650
• Rated Output: 2,500 kVA / 2,000 kW
• Voltage: 10,500 V
• Current: 138 A
• Speed: 1,500 RPM
• Frequency: 50 Hz
• Phase: 3
• Power Factor: 0.8
• Insulation Class: F
• Rated Altitude: 1,000 m
• Excitation: 63 V / 13.8 A

Generator 3

• Manufacturer: Caterpillar
• Model: SR4B HV
• Frame: 2650
• Rated Output: 2,500 kVA / 2,000 kW
• Voltage: 11,000 V
• Current: 131 A
• Speed: 1,500 RPM
• Frequency: 50 Hz
• Phase: 3
• Power Factor: 0.8
• Insulation Class: H
• Rated Altitude: 1,000 m
• Excitation: 52 V / 11.4 A

Scope of Supply

The package comprises:

• 3 × Caterpillar G3520E 2 MW gas generator sets – 6 MW total
• 3 × Terberg engine control panels
• 3 × Radiator structures
• 3 × Acoustic enclosures
• 1 Lot – Common chimney, cooling systems, cables and cable trays
• 1 Lot – 11 kV switchgear/NGR and auxiliary MCC panels
• 1 Set – Gas flow meter and starting batteries

These Caterpillar G3520E generator sets represent an attractive solution for industrial captive power, combined heat and power (CHP), independent power generation, utility support, gas field applications and other continuous duty power projects.

Condition: Reported Excellent

Delivery: Immediately Available

Contact us for pricing, additional photographs, inspection arrangements, technical documentation and further information.
