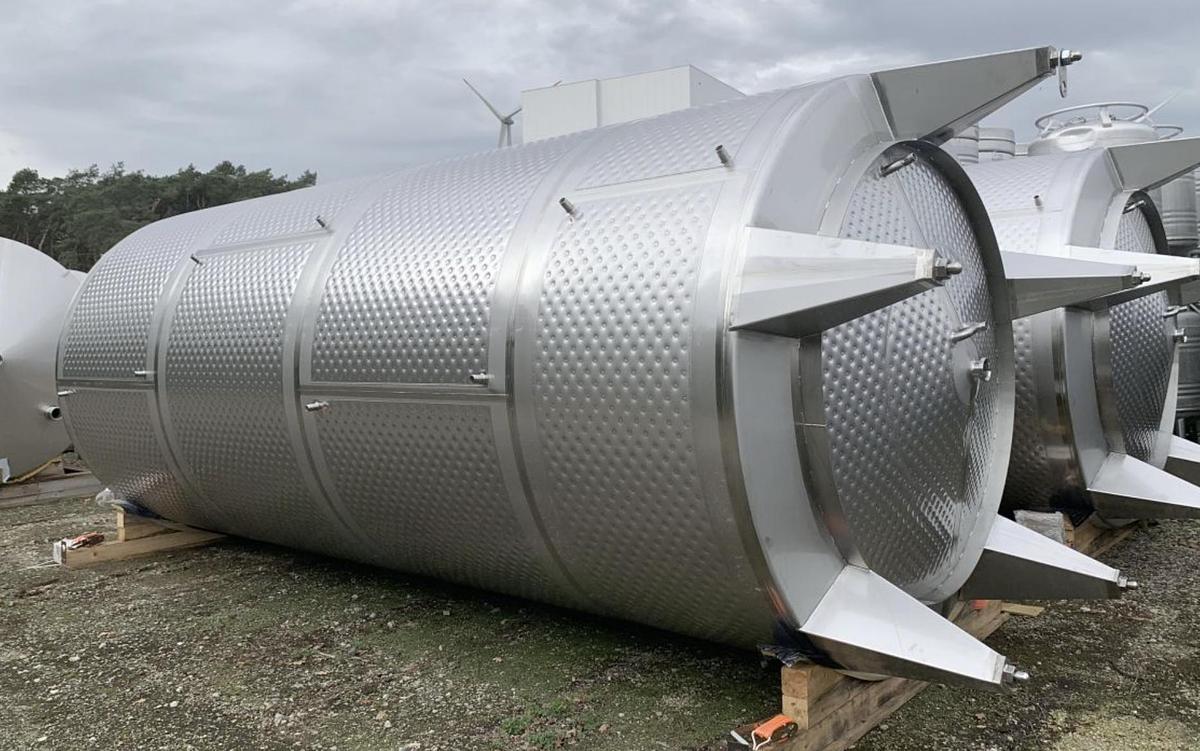

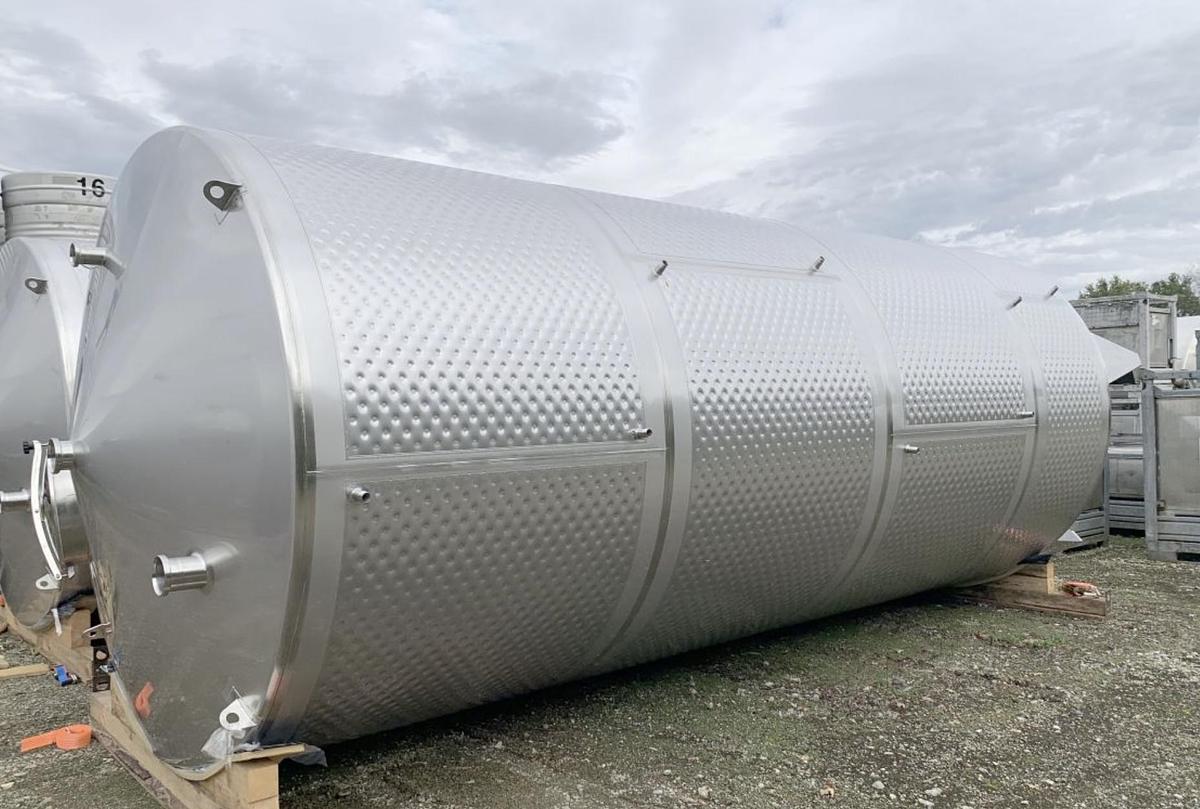

26,000 Litre 316 Stainless Steel Storage Tanks with Heat Exchanger

Brand New

4 Available

Maximum Density (P)1,400 kg/m³

Inner Weld Finish (Ra)0.80 µ

External FinishStainless Steel 2B

Tank PressureAtmospheric (ATM)

Minimum Temperature-10 °C

Material – Wet PartsSS AISI 316L (V4A)

Model Vertical

Configuration Single jacketed with heat exchanger

Tank Shape Cylindrical

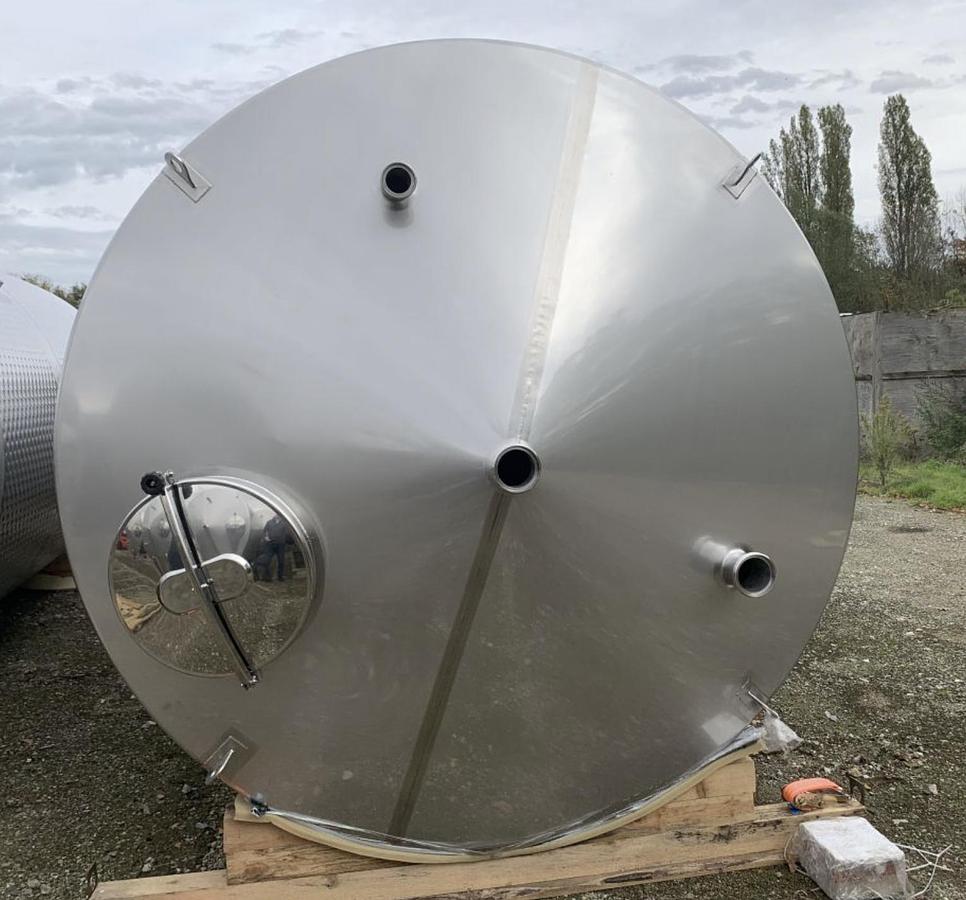

Top Type Conical 15°

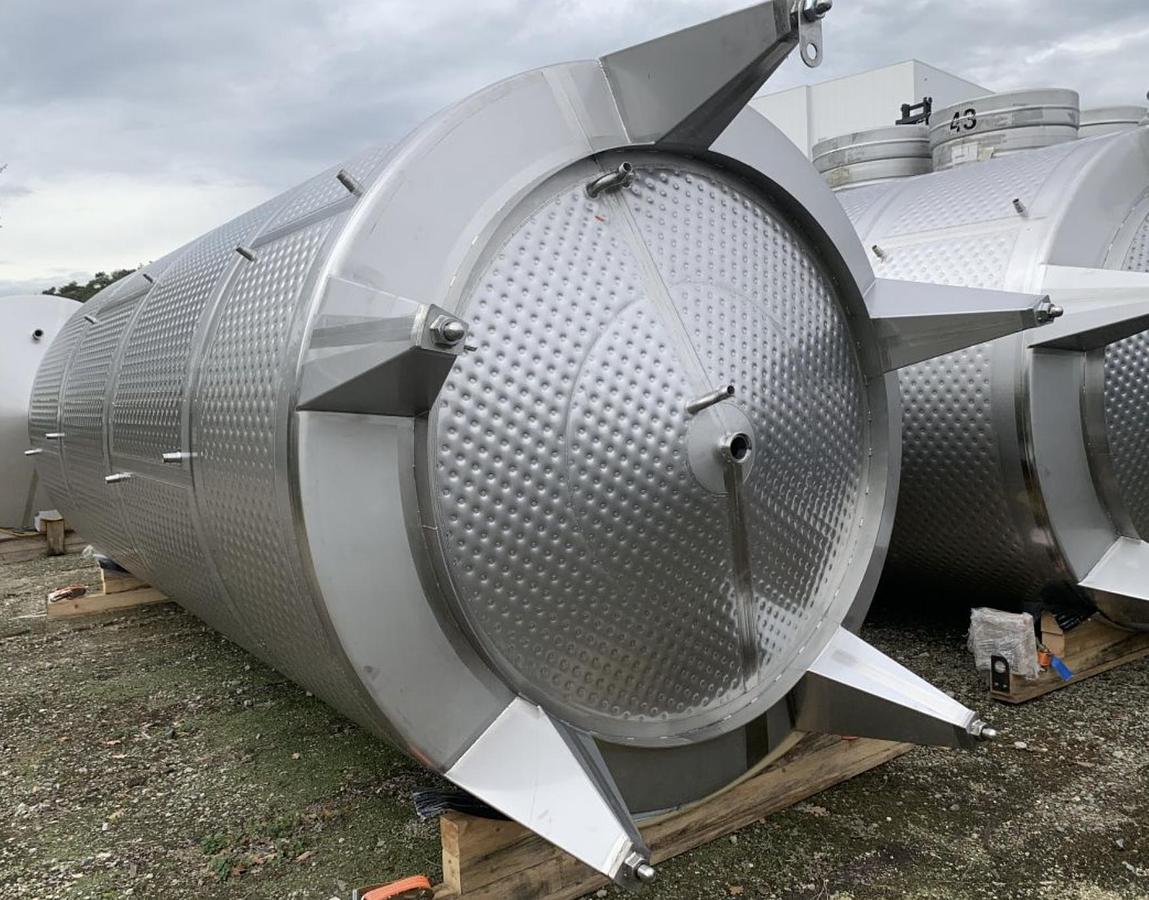

Bottom Type Conical 15°

Total Discharge Yes

Fixation Points 5 Adjustable Feet

Number of manways1

Height manhole 1 (mm)Ø 500 mm

Tank outletinside Ø 65 mm

Outlet typeDIN11851 male

Wall thicknesses of the inner tankl;Top2,50 mm Cylinder2,50 mm Bottom4 mm

Dimensions of the tank;

Distance from outlet to ground356 mm

Outer diameter tank2.400 mm

Cylinder height5.500 mm

Feet height745 mm

Total height of tank6.642 mm

Empty weight tank1.400 Kg
