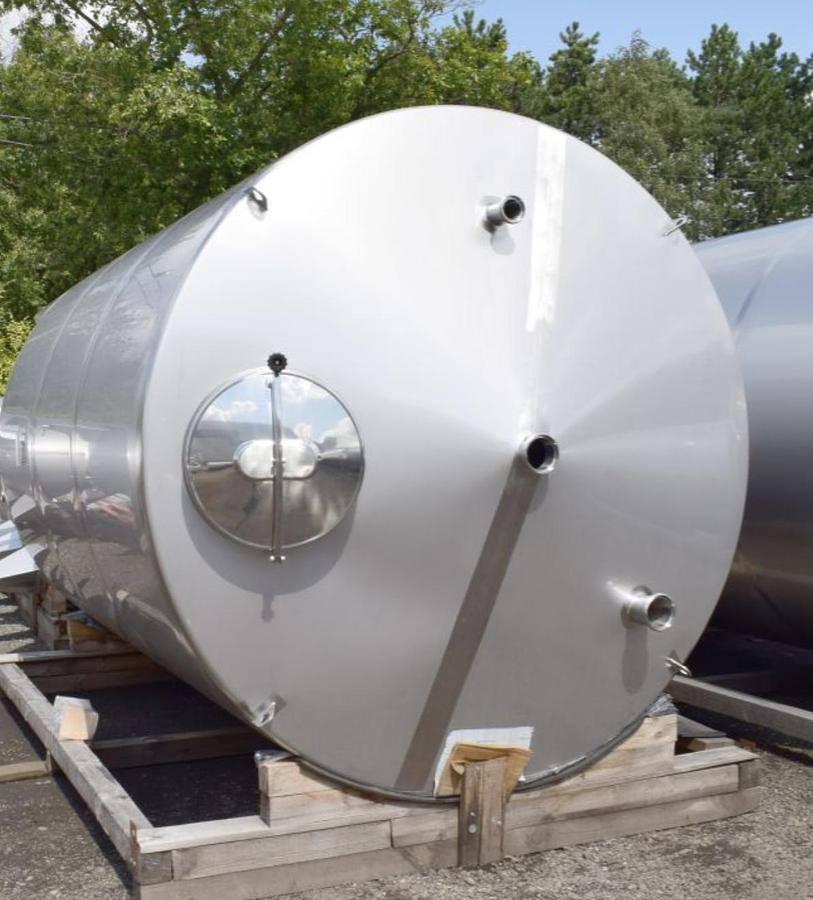

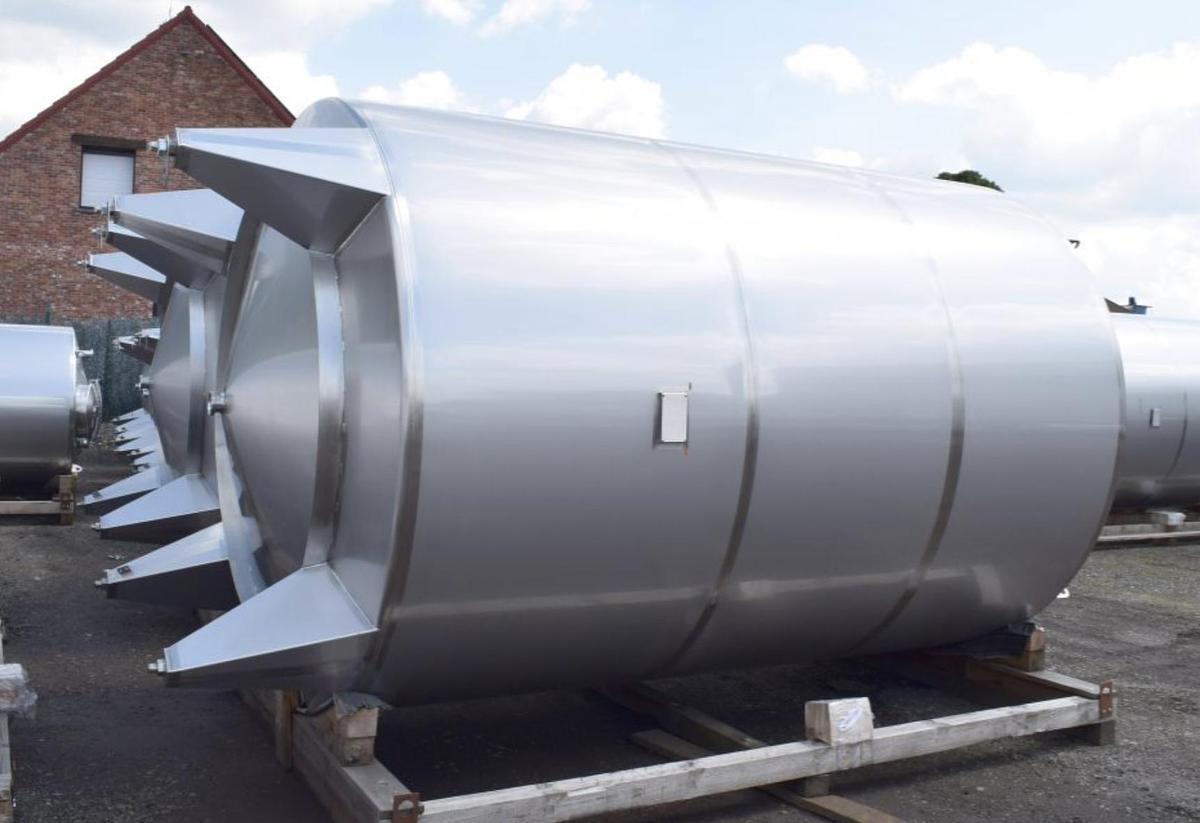

15,000 Litre 304 Stainless Steel Storage Tanks

Model: Vertical

Configuration: Single-skin

Shape: Cylindrical

Total Discharge: Yes

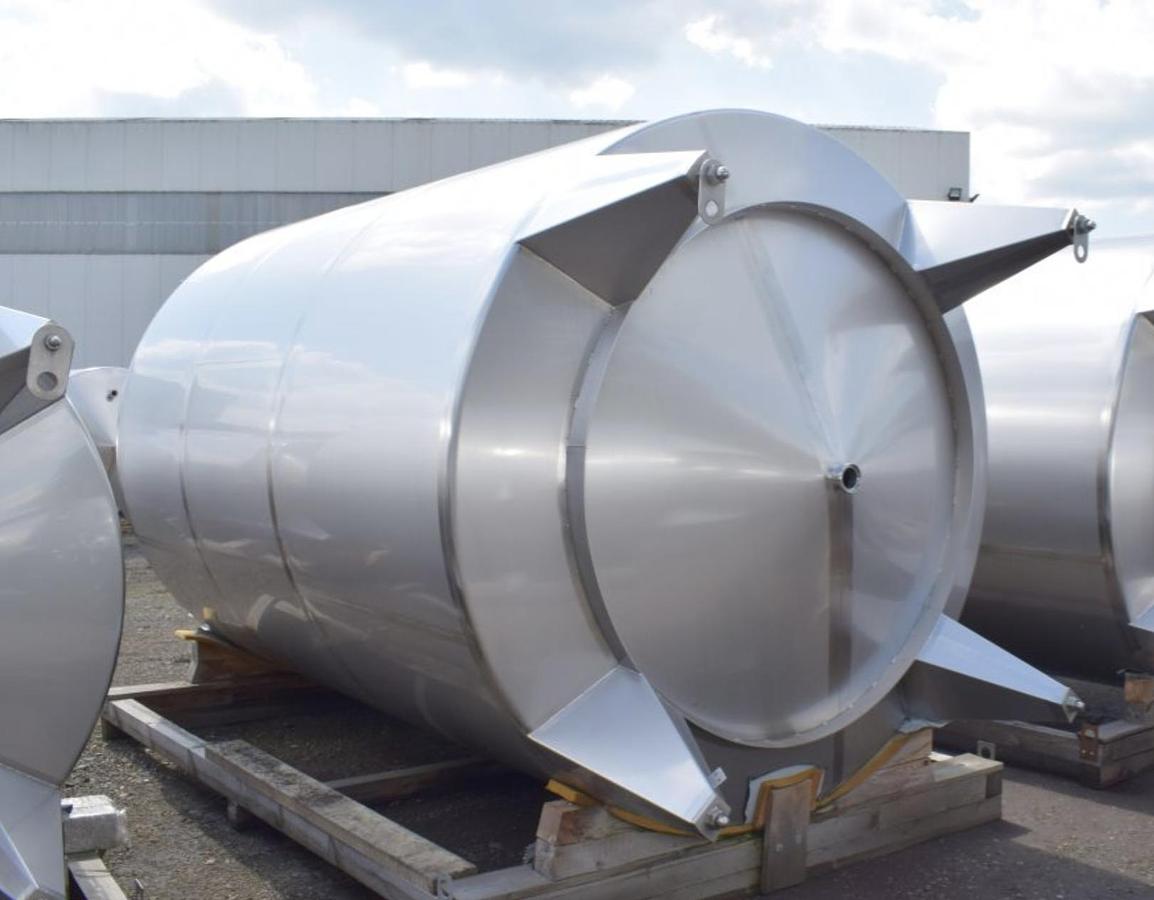

Fixation: 4 adjustable feet

Legs: Set of baseplates and adjusting pieces included

Capacity & Operating Conditions

Volumetric Volume: 15,300 L

Maximum Density: 1,200 kg/m³

Pressure: Atmospheric

Minimum Temperature: -10°C

Materials & Finish

Material (Wet Parts): Stainless Steel AISI 304L (V2A)

Finish (External): Stainless Steel 2B

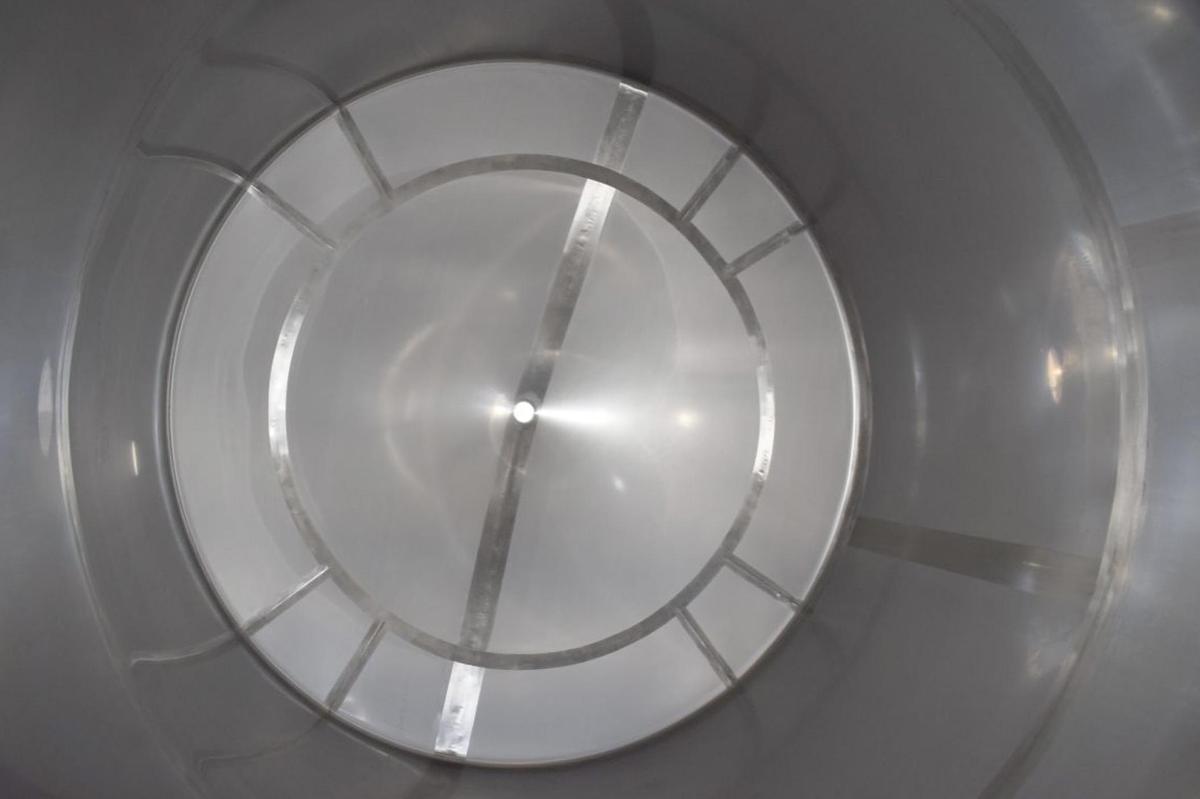

Inner Surface Finish: 0.8 µm

Ra Inner Weld: 0.80 µm

Manway(s): RVS 304L

Manway Gasket: EPDM

Fixation Points: RVS 304L

Connections & Openings

Number of Manways: 1

Position of Manway: Top

Manway Diameter: Ø 500 mm

Tank Outlet: Ø 65 mm (internal)

Outlet Type: DIN 11851 Male

Wall Thickness (Inner Tank)

Top: 2 mm

Cylinder: 2 mm

Bottom: 3 mm

Dimensions

Outer Diameter: 2,359 mm

Cylinder Height: 3,250 mm

Feet Height: 738 mm

Total Height: 4,380 mm

Distance from Outlet to Ground: 306 mm

Empty Weight: 650 kg

Compliance & Documentation

Suitable for Food Industry: Yes

Documents Included: Yes (Optional)

Technical Drawing Included: Yes
