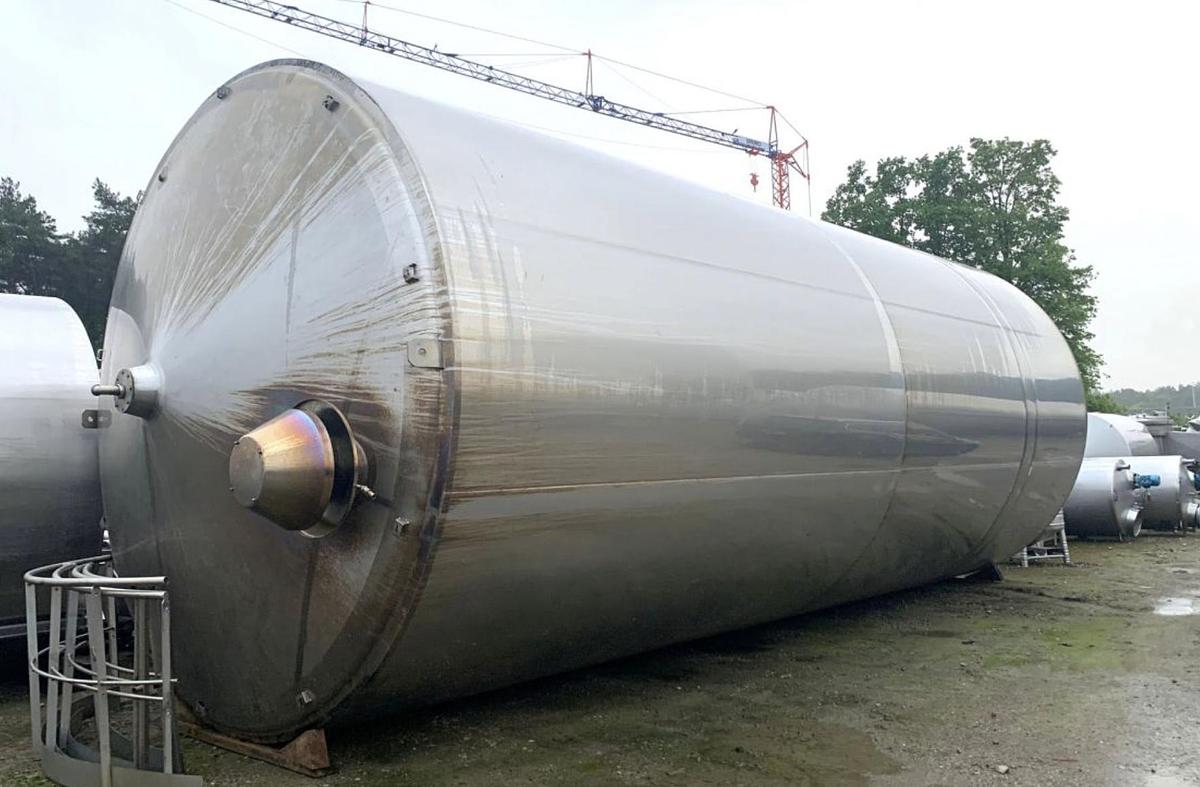

100,000 Litre Insulated Storage Tank

Capacity: 100,000 L

Tank Pressure: ATM – atmospheric

Wet Parts Material: SS AISI 304 (V2A)

Configuration: Insulated

Insulation: Yes

Bottom Outlet: Yes

Total Discharge: Yes

Insulation Material: Rockwool

Insulation Thickness: 50 mm

Suitable for Food Industry: Yes

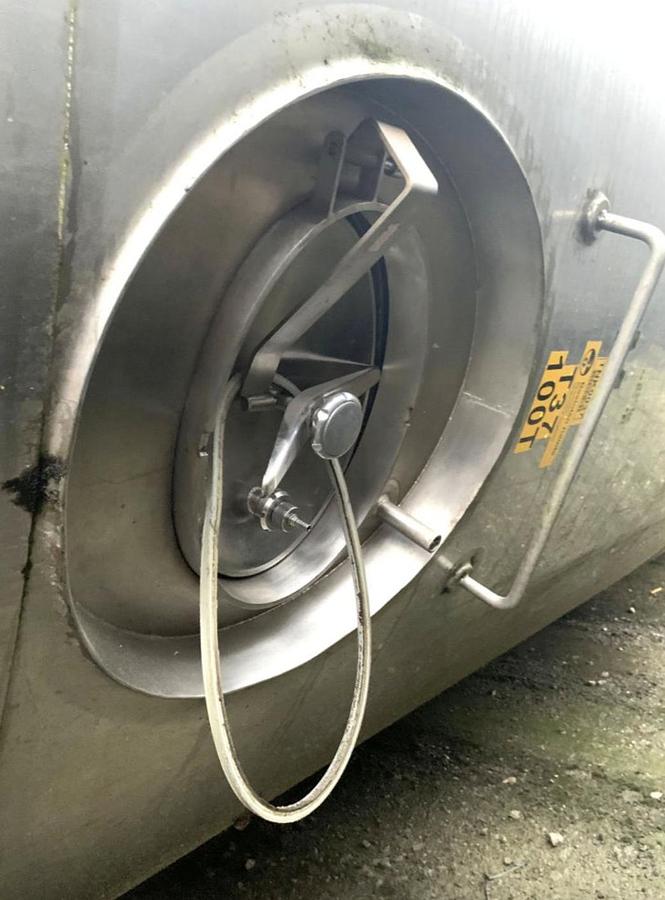

Number of Manways: 1

Manway Position: Cylinder

Outlet Type: DIN11850

Outlet Size: DN65

Agitator Type: Propeller agitator

RPM: 725/42 – 1470/86

Power: 2.7 / 5.5 kW

Voltage: 400 V – three-phase

Current: 9.20 / 11.00 A

Internal Diameter: 4,000 mm

Outer Diameter: 4,135 mm

Cylinder Height: 8,000 mm

Total Height: 10,830 mm

Total Outer Width: 4,300 mm

Total Outer Length: 11,000 mm

Distance from Outlet to Ground: 900 mm

Empty Weight: 8,000 kg
