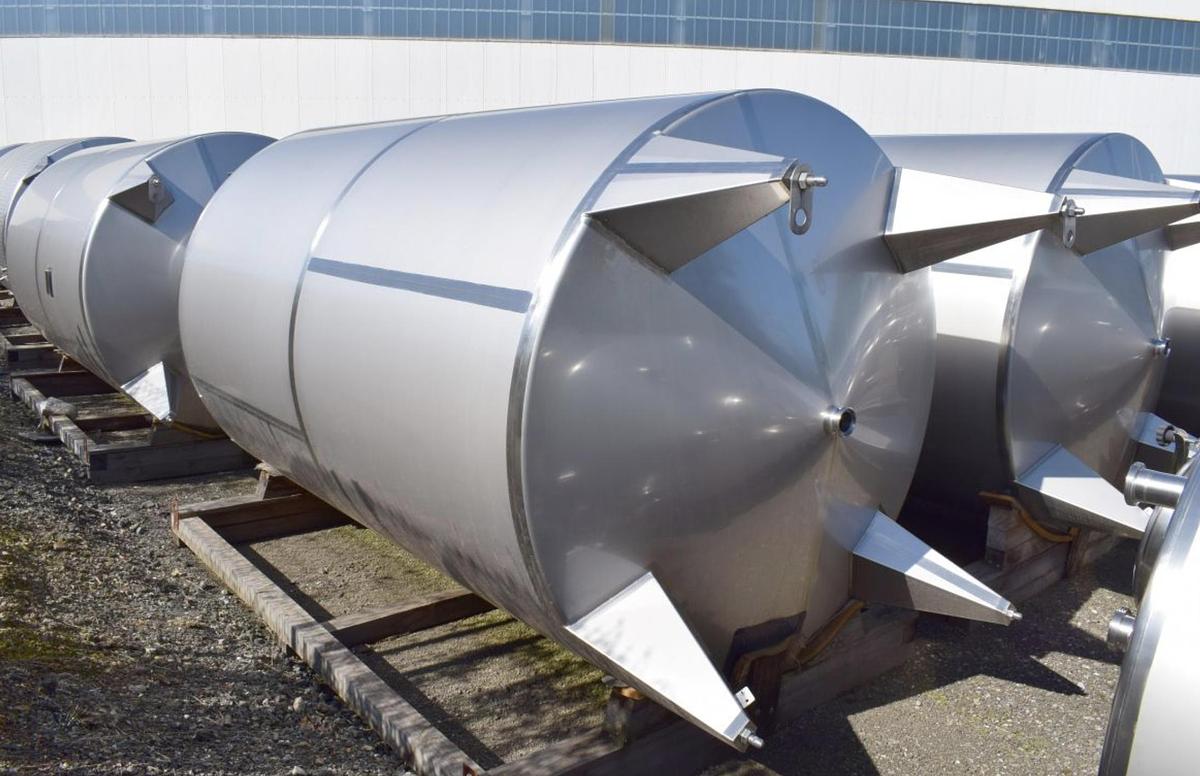

Brand new storage tank

8 Available

316 Stainless Steel

Volumetric volume (L) 10.300 L

Max. density P (kg/m³) 1.200 kg/m³

Ra inner weld 0,80 µ

Finish stainless steel 2B

Pressure in tank ATM - atmospheric

Min. temperature (°C) -10 °C

Number of manways 1

Position of manway at the top

Height manhole 1 (mm) Ø 500 mm

Tank outlet inside Ø 65 mm

Outlet type DIN11851 male

Distance from outlet to ground 306 mm

Outer diameter tank 2.024 mm

Cylinder height 3.000 mm

Feet height 694 mm

Total height of tank 4.040 mm

Empty weight tank 484 Kg
