90,000 Litre Brand New 304 Stainless Steel Tank

90,000 Litre Brand New 304 Stainless Steel Tank

Location:Europe

Description

- Total capacity: 101.8m3

- Working capacity: 90m3

Diameter of tank=3700mm / Dsupport flange=3870mm / Hmax=10200mm / Hmax approx=11300mm (including guardrail)


- Working pressure: atmospheric

- Test pressure: hydrostatic full (water)

- Operating temperature: up to 30°C

- Material in 1.4307 (AISI304L)

- Product to be stored – Aqueous Ammonia

- Product density  up to max 1000kg/m3

- Internal surface finish: 2B

- External surface finish: 2B

- Internal butt welding seams  - as laid pickled and passivated

- Internal corner welding seams - as laid pickled and passivated

- External butt welding seams - as laid pickled and passivated

- External corner welding seams - as laid pickled and passivated

- Tank surfaces inside cleaned, degreased and passivated

- Tank surfaces outside cleaned and degreased

- all gaskets in EPDM

* distance from floor to outlet approx. H=150mm

* pipes in contact with the product according ISO1127

*outdoor tank

Design Code: BS 14015:2004

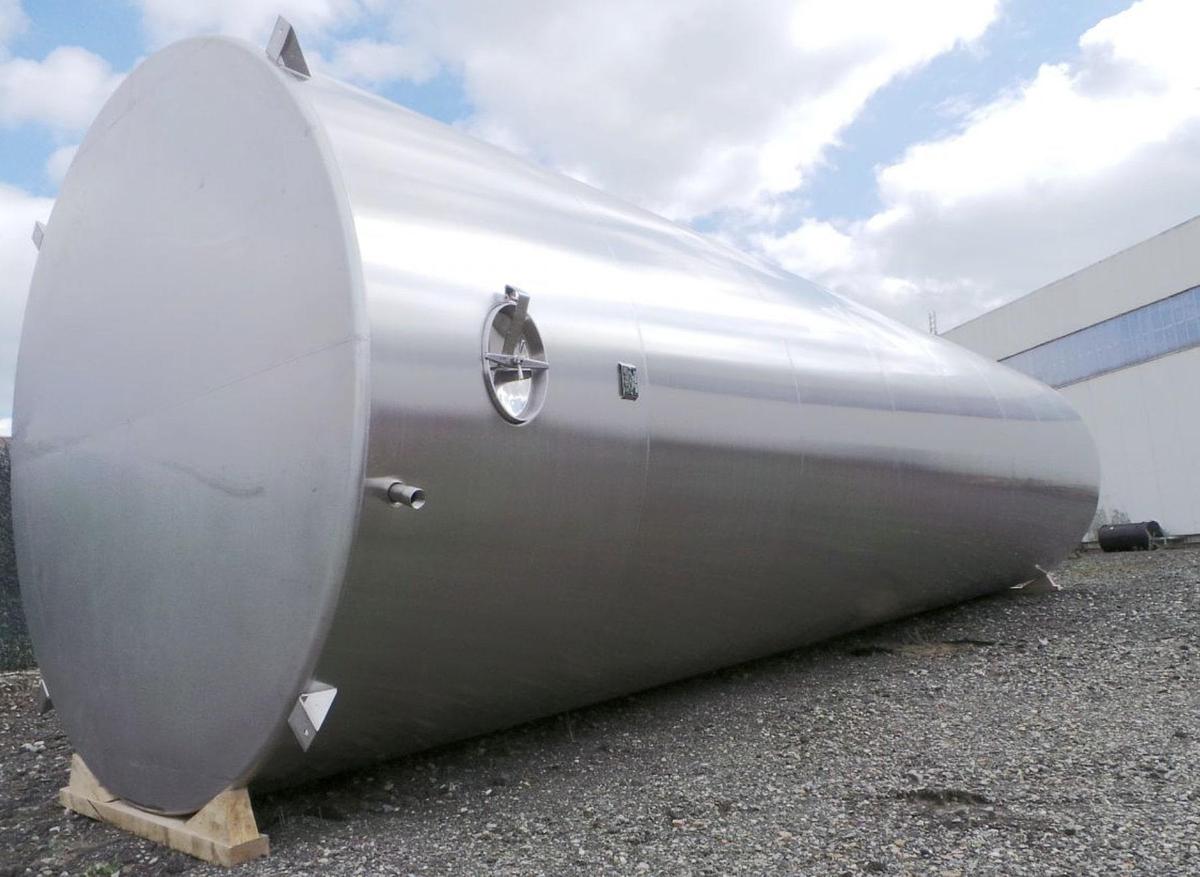

(note. photo is for example purpose only, these tanks are made to order)



Specifications

ConditionNew
Stock NumberSBSSBEL001
Capacity (Litres)90000
