3 Available

Internal diameter: approx. 3,900 mm

Total height: approx. 6,210 mm

Specific weight of the medium: 1.0 to/m³

Operating temperature: 100 degrees Celsius

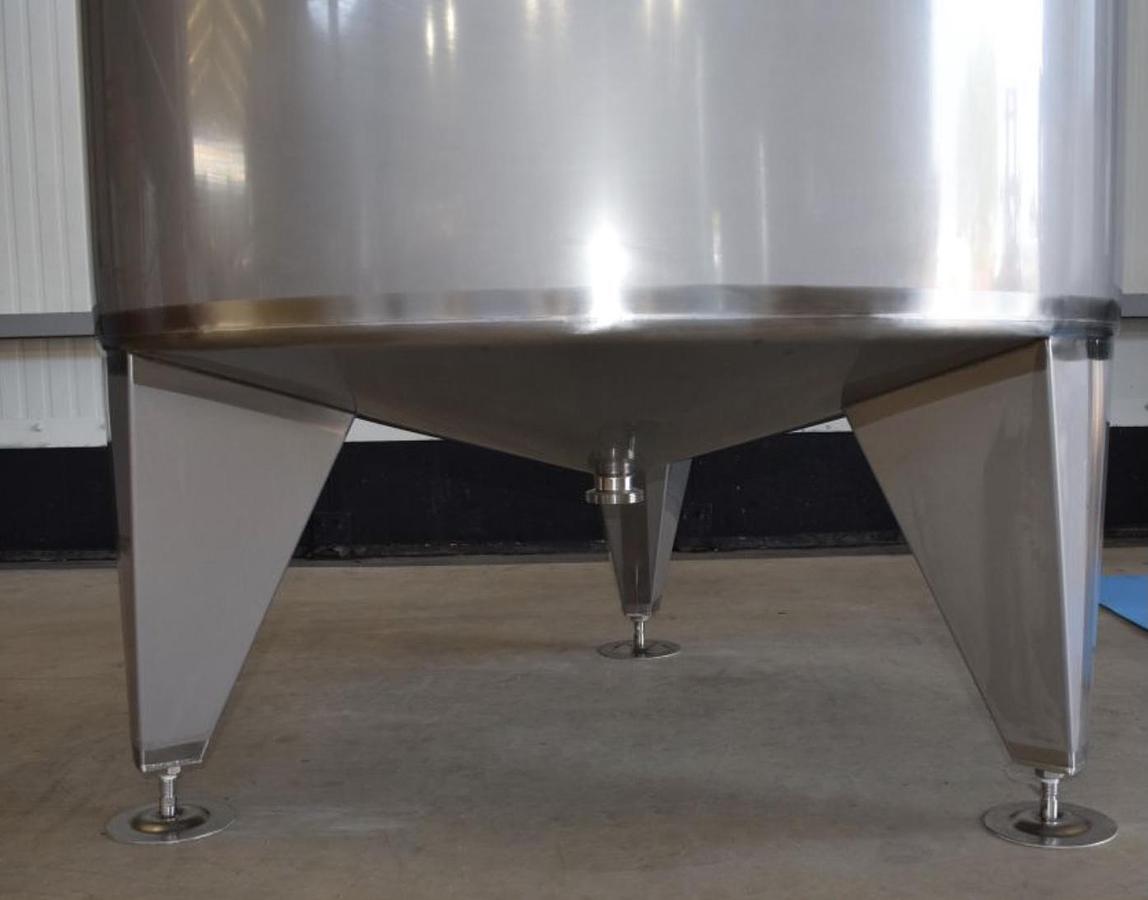

Standing form: profile feet x5

Foot height: approx. 1,300 mm

1 x threaded connector DN 65

1 x connector for tank ventilation

1 x oval manhole (440 mm x 340 mm)

2 x threaded connectors DN25

1 x threaded socket 3/4"

1 x threaded connector 2"

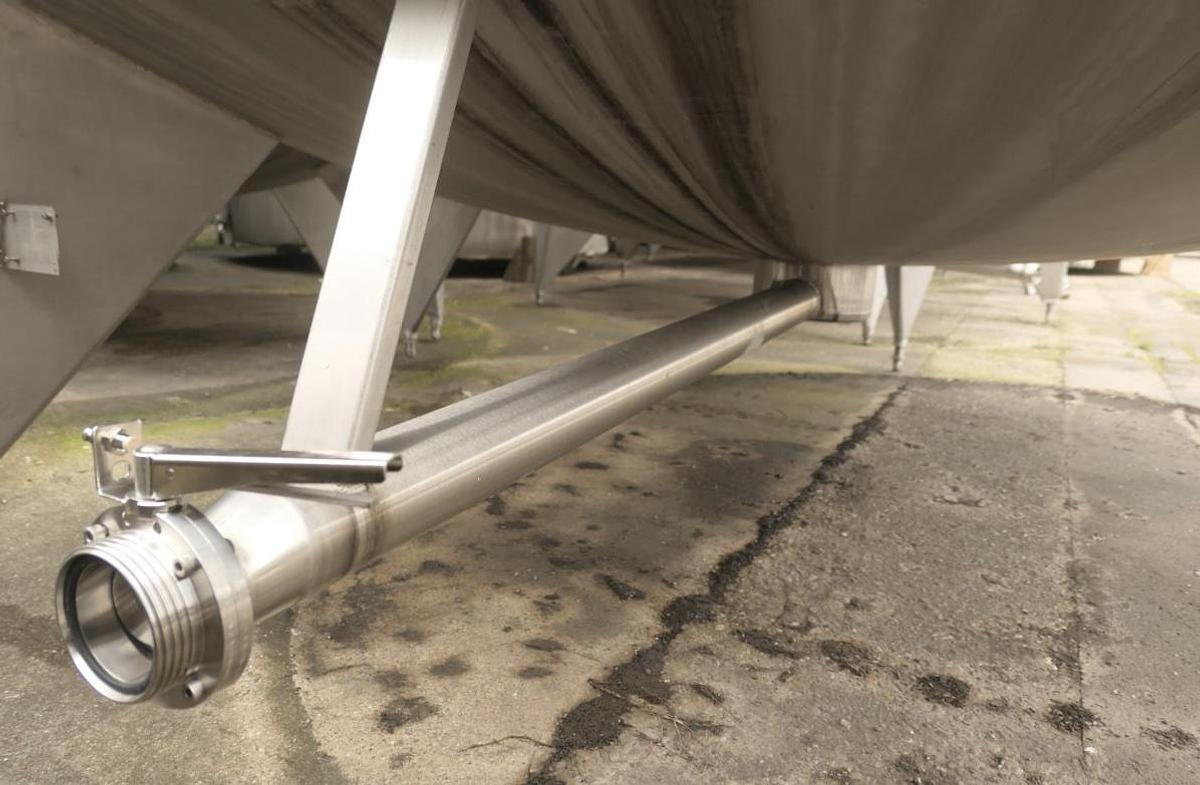

1 x Outlet at the bottom of the tank pulled forward with disc valve DN80

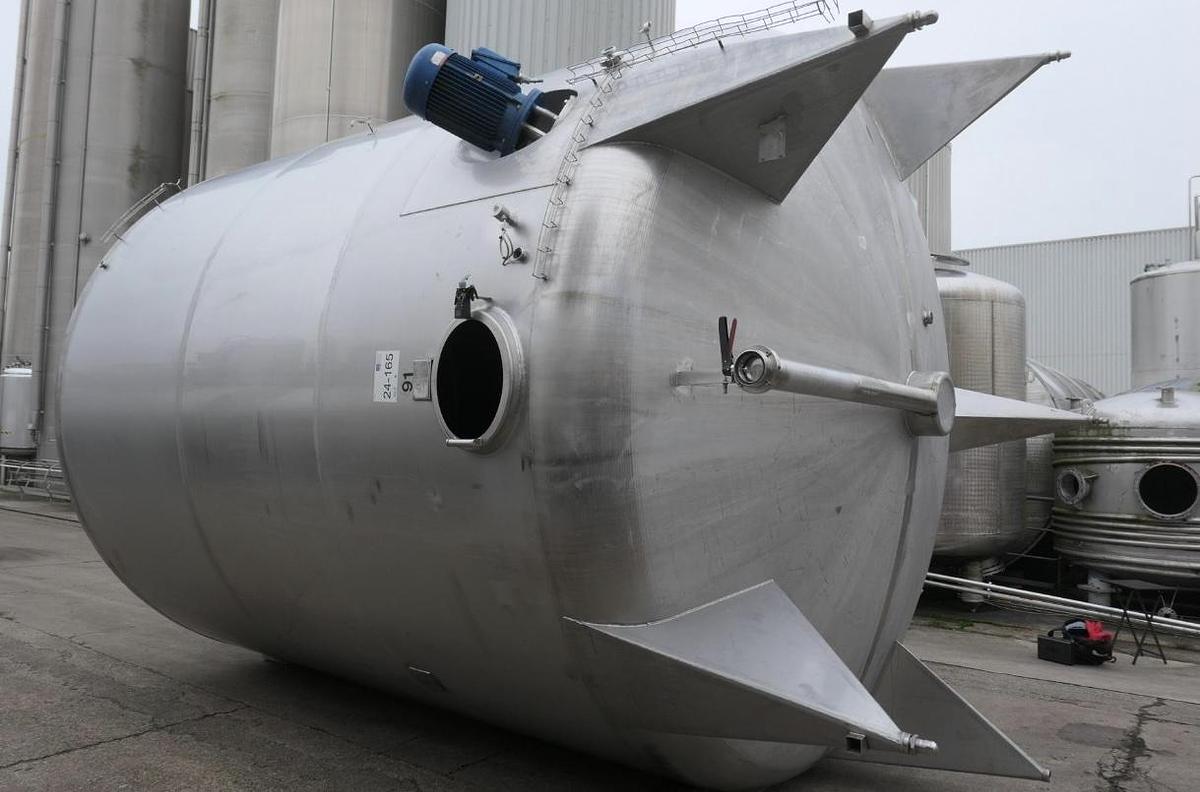

Agitator;

Type of agitator: Propeller

Installation: side

Speed: 475 / 975 rpm

Agitator power: 1.85 / 7.5 kW

Number of agitator levels: 1

Manufacturer: Emod Motoren GmbH

Type: LA160L-12/6
