32,700 Litre 316 Stainless Steel Tanks

5 Available

Volumetric volume (L) 32.700 L

Max. density P (kg/m³) 1.000 kg/m³

Pressure in tank ATM - atmosferic

Wet parts of tank SS AISI 316L (V4A)

Vertical

Single-skin

Top - conical 15 °

Shape of tank - cylindrical

Bottom - conical 20 °

Total discharge

Fixation points 4 non adjustable feet

Gasket manway(s) EPDM

Valve RVS 316L

Fixation point(s) RVS 304

Suitable for food industry

Number of manways 2

Position of manway cylinder

Height manhole 1 (mm) Ø440 mm x H 308 mm

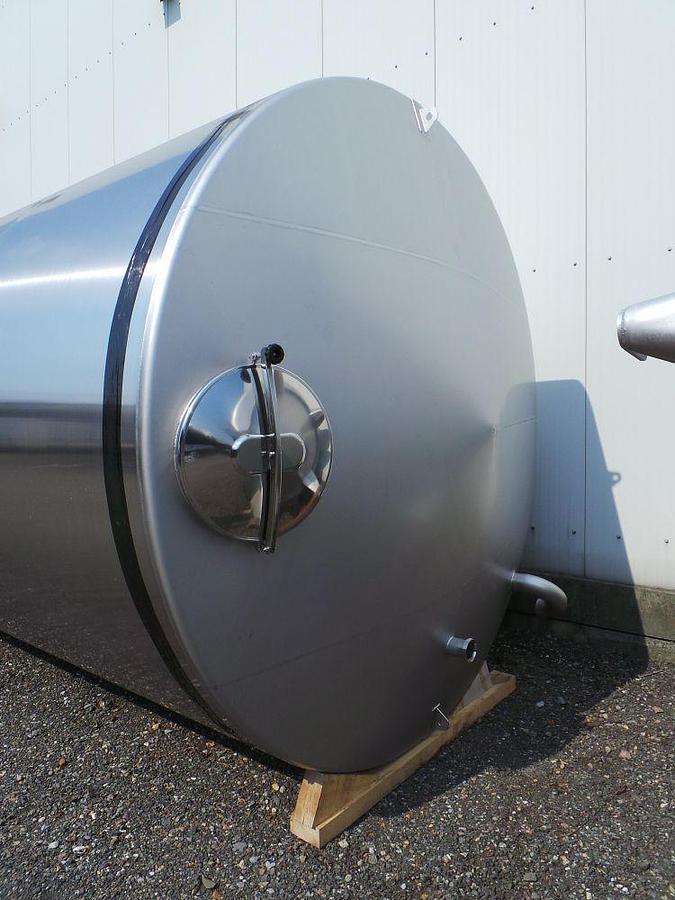

Position 2nd manway headside

Height manhole 2 (mm) 500

Tank outlet inside Ø 80 mm

Outlet type DIN 11851

Thickness

Top 2 mm

Cylinder 2 mm

Bottom 3 mm

Dimensions

Distance from outlet to ground 405 mm

Outer diameter tank 2.984 mm

Cylinder height 4.500 mm

Height of top 382 mm

Height of bottom 595 mm

Feet height 1.000 mm

Total height of tank 5.882 mm

Empty weight tank 2.900 Kg
