Thermax Boilers

2 x Thermax V115875A

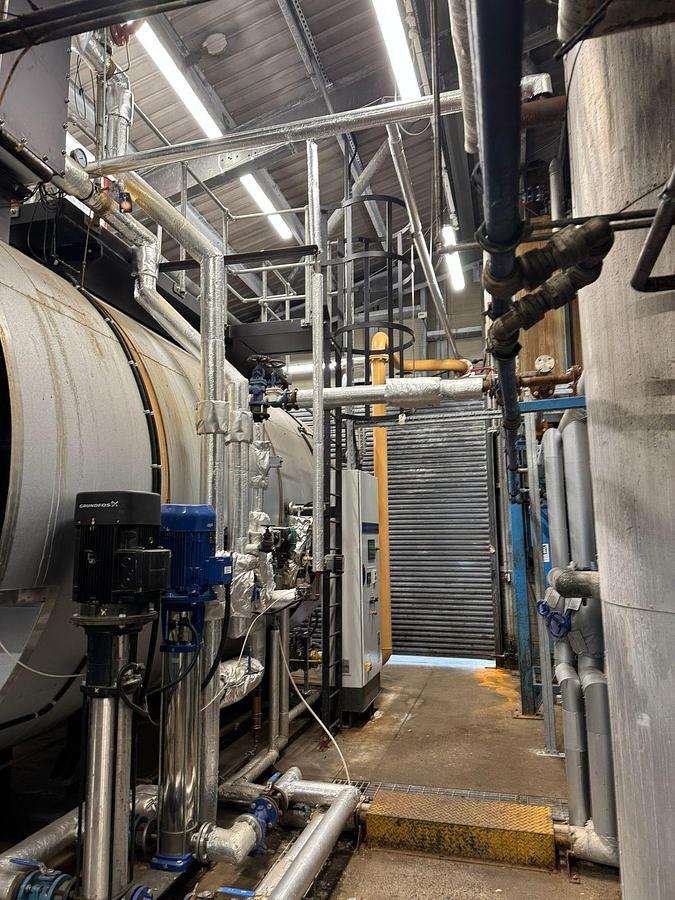

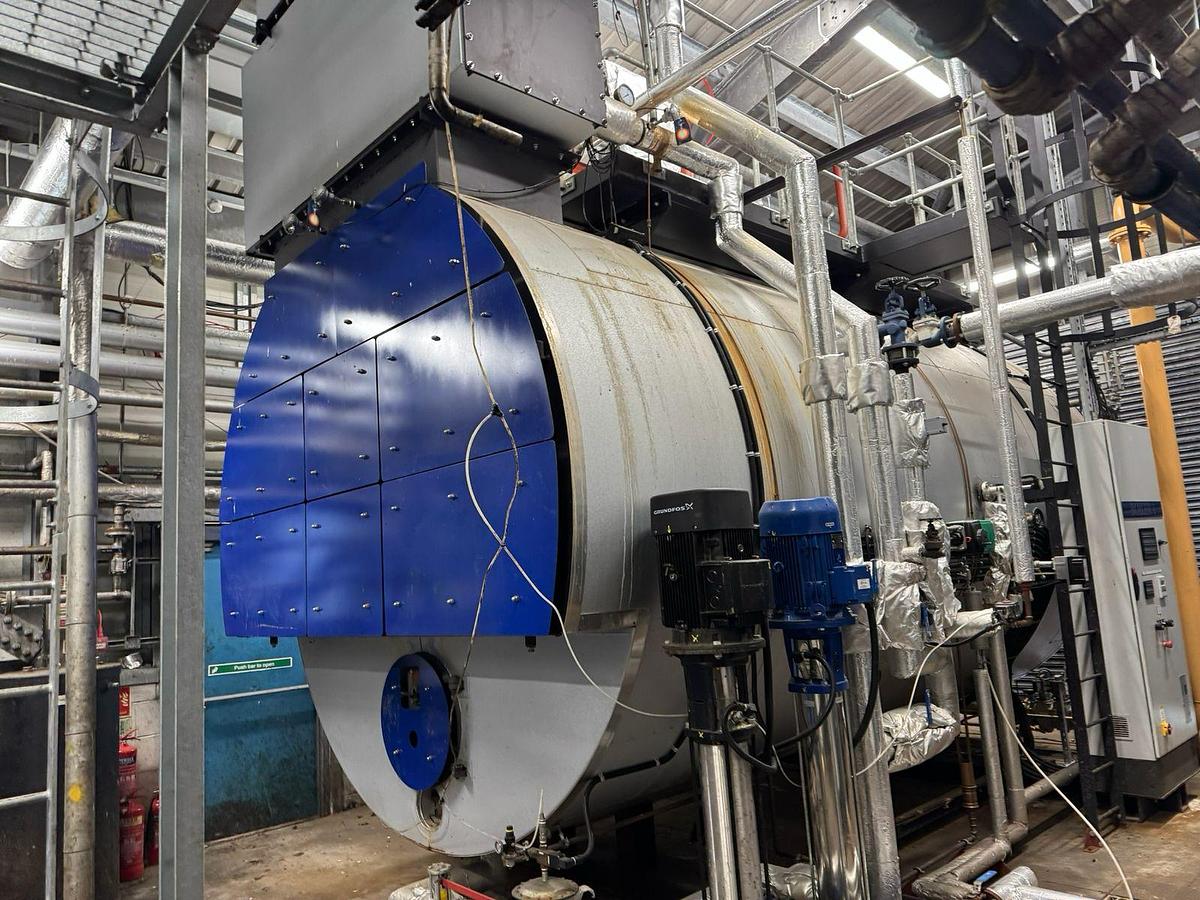

The Thermax V115875A is a horizontal, three-pass, wet-back steam boiler designed for efficient and reliable generation of saturated steam in industrial process applications.

Key Features

Boiler Type: Fire-tube, three-pass, wet-back configuration

Design Pressure: Typically up to 10.5 bar g (subject to final design spec)

Steam Output: Approximately 8,000–9,000 kg/hr (based on Thermax 8620 kg/hr model range)

Fuel Type: Dual-fuel system (natural gas or light oil)

Efficiency: Up to 89–91% with economiser

Construction: Fully welded steel shell, corrugated furnace for improved heat transfer and pressure resilience

Furnace Design: Wet-back reversal chamber reduces thermal stress and extends service life

Tube Layout: Smoke-tube bundle with easy front and rear access for maintenance

Mounting: Skid-mounted with integrated feedwater, blowdown, and safety valve connections
